RASExpress User Guide

68 CommPlete Communications Server

Introduction

You can manage or configure the RASExpress server from anywhere in the world by

using a Web browser. To access the RASExpress server, simply type the IP address of

the server into the browser’s URL field and follow the prompts to log in. In the

RASExpress server’s Web pages, click the hypertext links to configure or manage the

server. To change the value of an option, click the option box and type or select a new

value. To save your changes, click the Submit button. To cancel your changes, click

the Reset button. To return to the home page and main menus, click Back to main

page.

Note: When you finish configuring a server, you must click Close Configuration at

the bottom of the main page. If you do not, the server locks out the ability to con-

figure it for three minutes. Neither Telnet nor MultiCommManager can access the

server until the time expires. There is no way to adjust the three-minute period.

Main Page

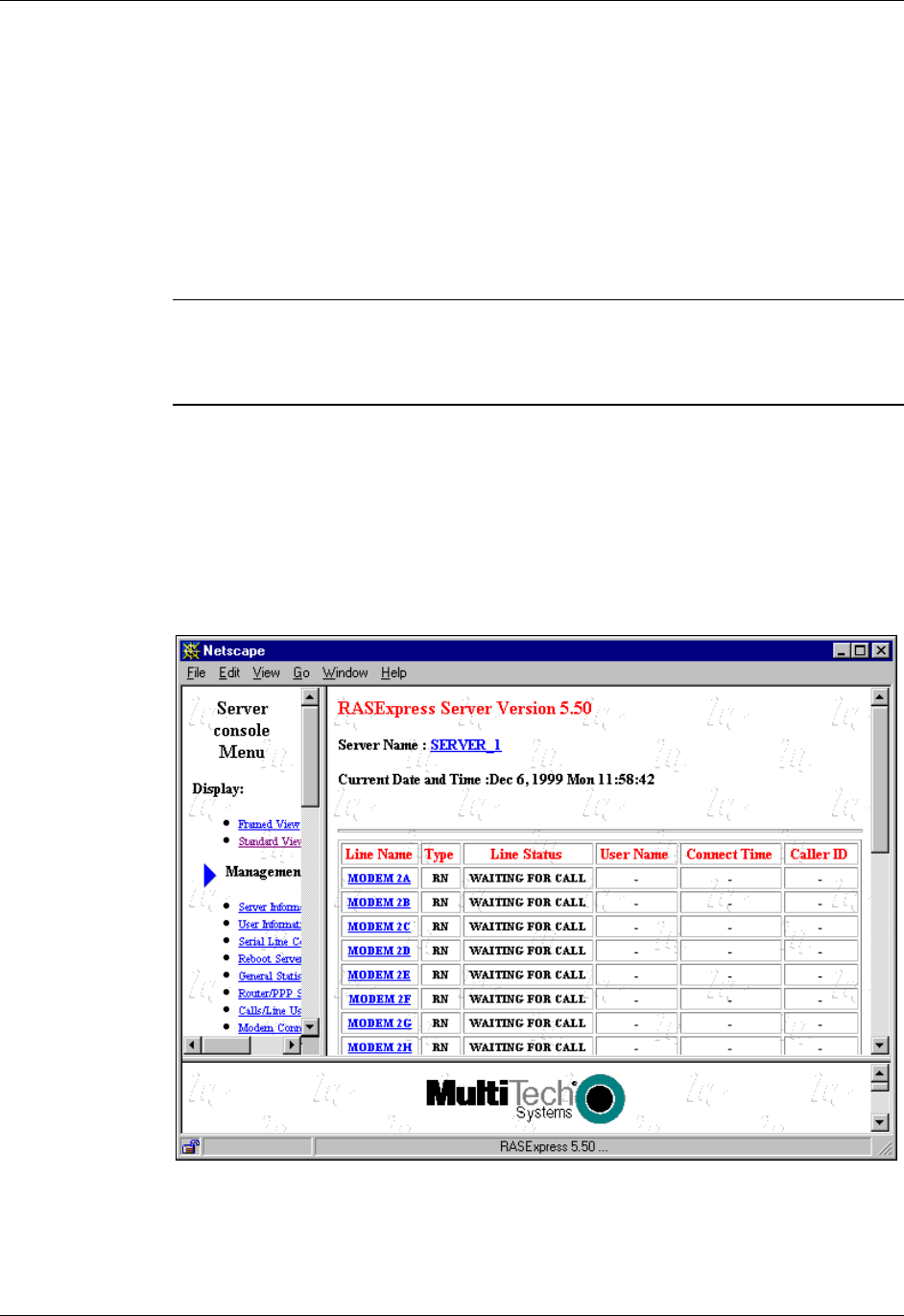

The main page is the default page that appears when you connect to the RASExpress

server. It is also your control center for the RASExpress server. If your browser can

display frames, the main page appears in frame view, as shown in the following

illustration.

If your browser cannot display frames, or if you select Standard View from the

Display menu, RASExpress appears as shown in the following illustration. Scroll

down to see more lines and the main menus.
