RASExpress User Guide

228 CommPlete Communications Server

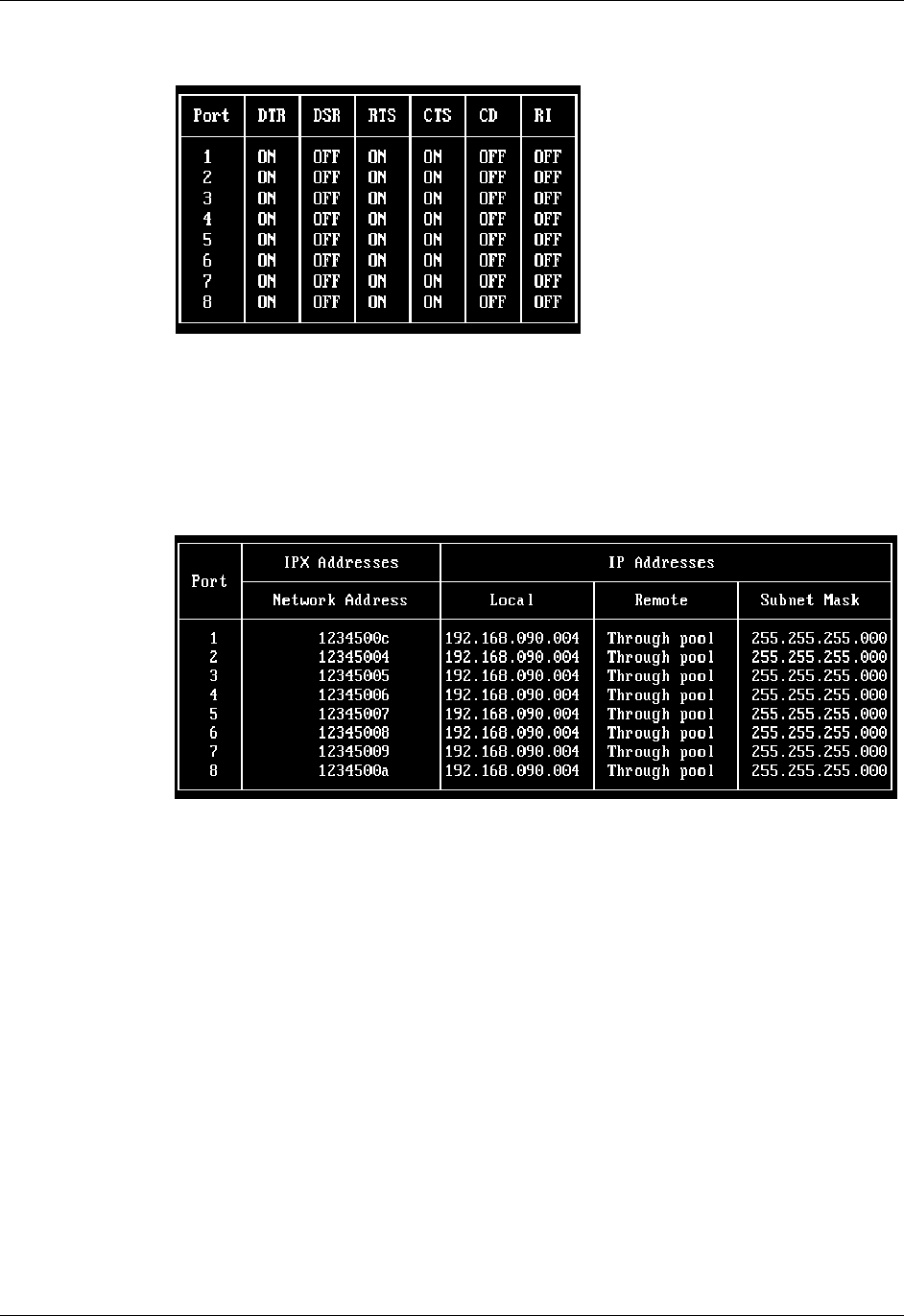

Display EIA Signals

The EIA Signals screen displays the current status of the EIA RS-232 signals on each

line. DTR and RTS are sent by the port. CTS, DSR, DCD, and RI are received by the

port. The DSR signal is not used by the RASExpress server. The status for each signal

can be either ON or OFF. Press E

SC to return to the Options menu.

Display Port Addresses

The Port Addresses screen displays the IPX and IP addresses for each of the RASEx-

press server’s ports. The IPX Network Address is that of the remote node client con-

necting to the port. The IP Local Address is the IP address for the server side of the

connection. The IP Remote Address is the IP address of the client. Note that these pa-

rameters are displayed only for remote node (PPP) connections. Press E

SC to return to

the Options menu.

Inbound User List

Select Inbound User List to display a list of users waiting for a remote control ses-

sion. Press E

SC to return to the Options menu.

If there are users waiting for a dial-in remote control session on the RASExpress

server, then a list appears telling you who and how many users are waiting. If no

users are waiting, a message appears that says so.

This option applies only to remote control. The listed users are the logon names of

users waiting to be taken over. These names would also be displayed in the Host List

if you dialed in for a remote control session.
