RASExpress User Guide
120 CommPlete Communications Server

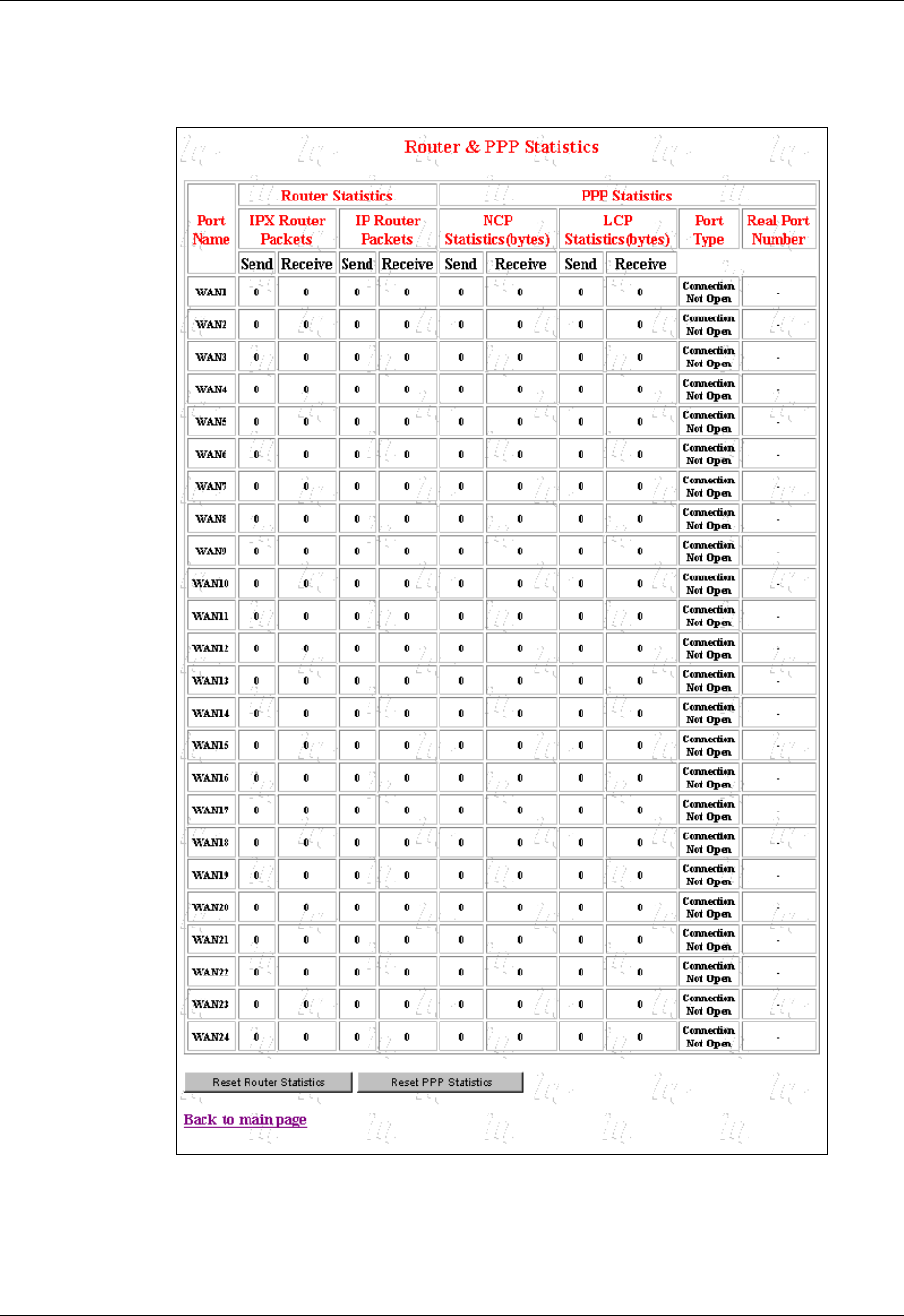

Router & PPP Statistics
Select Router/PPP Statistics to display router and PPP statistics for each port.
The Router Statistics columns display the number of IPX and IP packets sent or re-
ceived for each active port. The PPP Statistics columns display the number of Net-
work Control Protocol (NCP) and Link Control Protocol (LCP) bytes sent or received
for each active port. LCP packets are usually exchanged only during the establishment
