CommPlete Communications Server 201
SNMP Get Community Permission
Select the Get community permission. The choices are readonly and readwrite. The
default is readonly.
SNMP Set Community Name
Type the name of the Set community. The default is supervisor.
SNMP Set Community Permission
Select the Set community permission. The choices are readonly and readwrite. The
default is readwrite.

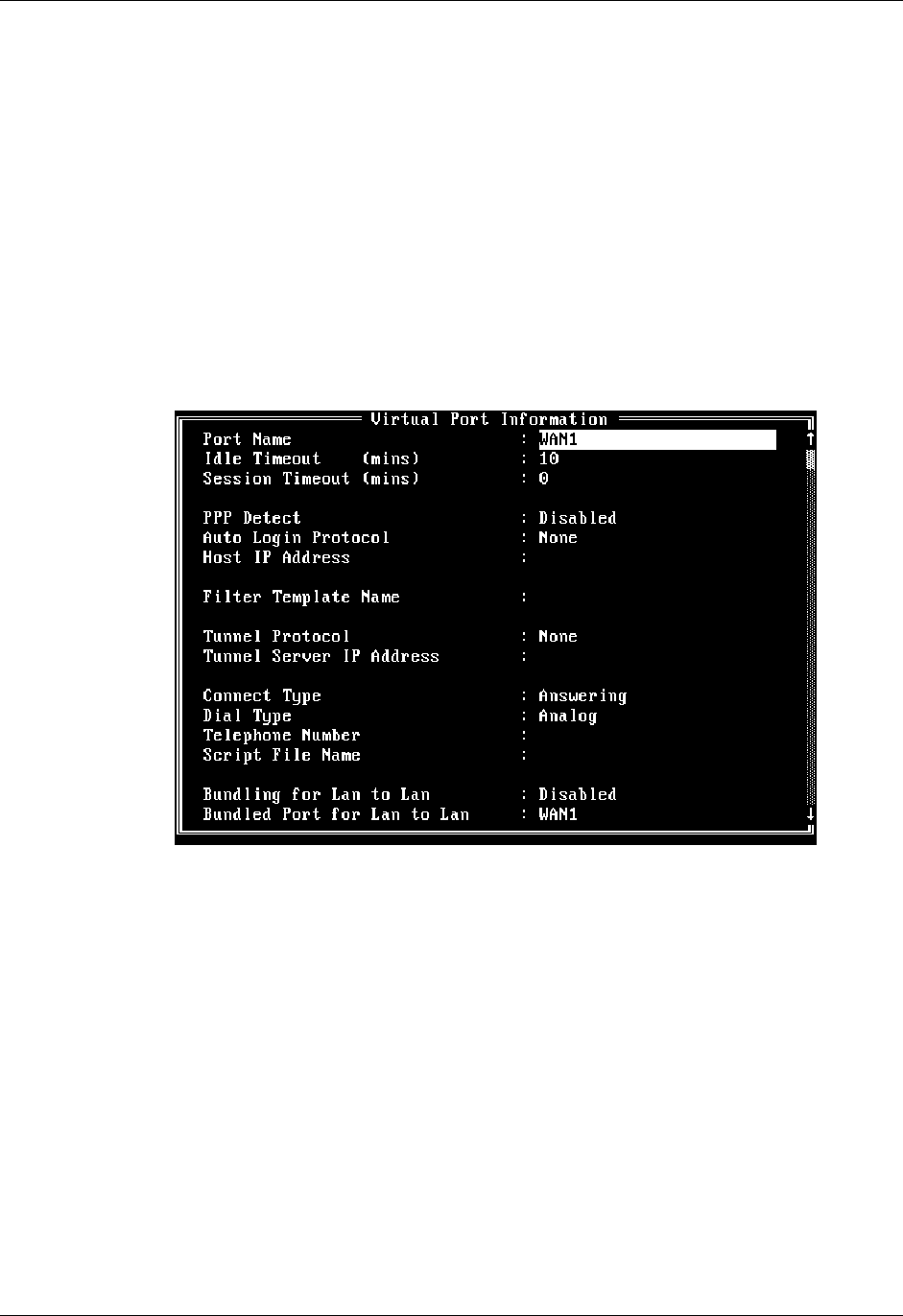

Virtual Port Information
To open the Virtual Port Information window, select Virtual Port Information from
the Server Setup menu.
Use the Virtual Port Information window to configure an individual WAN port.
Port Name
Displays the name of the port for which the information is displayed. To select
another port, press E
NTER. A List of Lines window appears from which you can
select the new port.
Idle Timeout
Type the number of minutes of no activity that is allowed before RASExpress
disconnects the port. A value of 0 disables idle timeout.
Session Timeout
Type the number of minutes allowed per session. When this time is exceeded,
RASExpress automatically disconnects the port. A value of 0 disables session timeout.
