Chapter 7 – SocketModem ISDN (MT128SMI)

Multi-Tech Systems, Inc. Universal Socket Hardware Guide for Developers (S000342F) 111

SocketModem ISDN Configuration

Serial Configuration

The MT128SMI SocketModem uses a 23-pin interface.

Note: The bolded, shaded pins are the MT128SMI active pins.

Top View

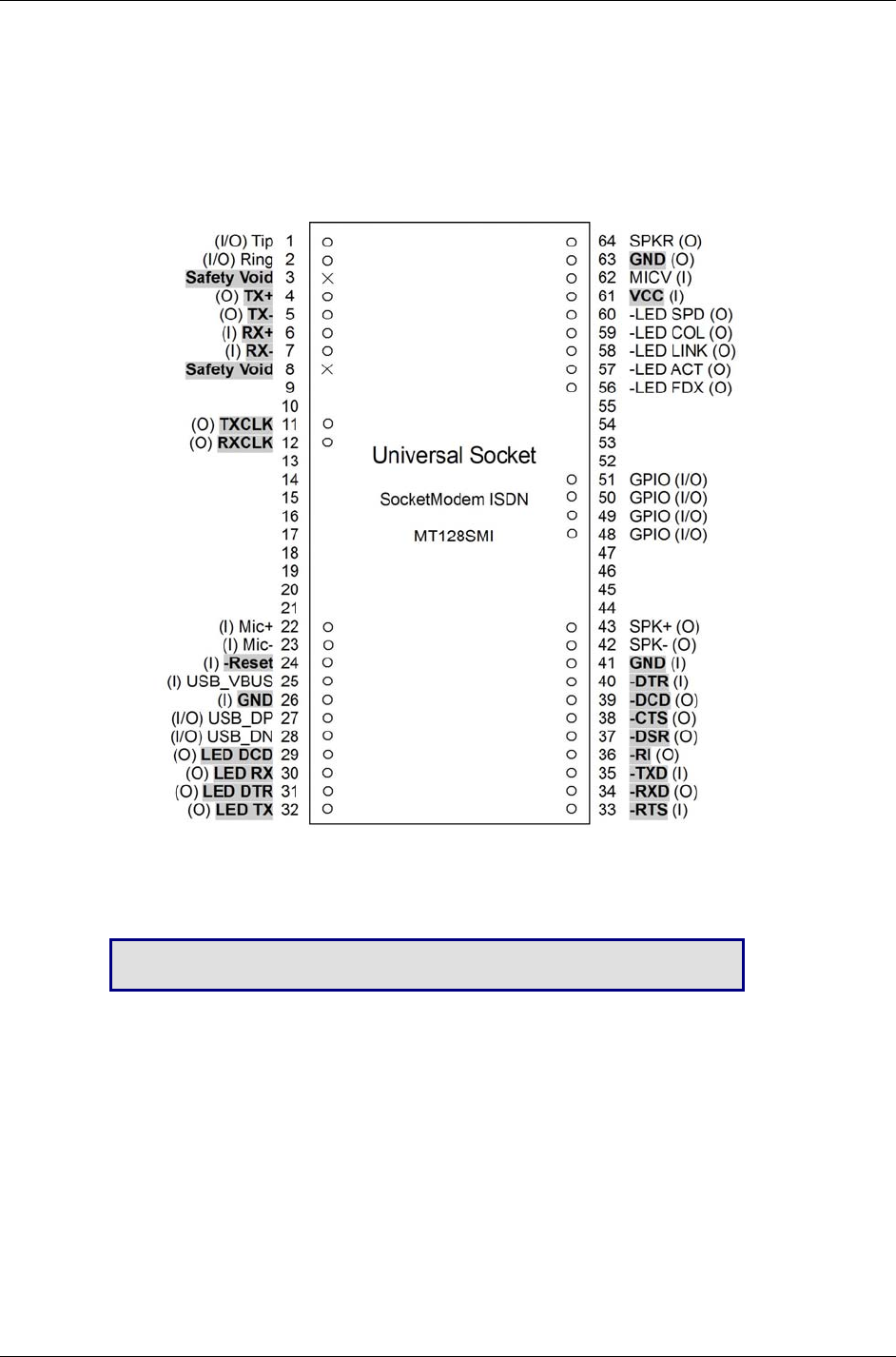

SocketModem ISDN Pinout

Note: Pin 6 is RX+ for ISDN. For the SocketEthernet IP, Pin 6 is RX-.

Pin 7 is RX- for ISDN. For the SocketEthernet IP, Pin 7 is RX+.

For pin descriptions, see the Universal Pinout Descriptions in Chapter 1.
