 Chapter4–ConfiguringYourMultiVOIP

MultiVOIP®Voice/FaxoverIPGateways 47

ConfiguringMessageWaiting

TheMessageWaitingIndicationfeatureprovidesanaudibleorvisibleindicationthatamessageisavailable.A

typeofmessagewaitingissoundingaspecialdialtone(calledstutterdialtone),lightingalight,orindicatoron

thephone.

Whenauserenablesasubscriptionformessagewaitingindication,asubscription

ismadewiththeVoiceMail

Server(VMS)forthatparticularevent.WhentheVoiceMailServerfinds achangeinthestateofa

correspondingmailboxorsomeeventhappens(forexample,whenanewvoicemessageisrecordedora

messageisdeleted,thentheVMSserversends

anotificationtothegateway.Itsindicationtotheuserisa

flashingLEDorsoundingastutterdialtone.

Themessagewaitingfeatureisactivewhen:

● YouenabletheUseSIPProxyoptionontheCallSignalingSIPwindow.

● YouenteraPrimaryProxyIPaddressintheSIPProxyParametersPrimaryProxyfield.

● YouentertheVoiceMailServerDomainNameorIPAddressintheSIPVoiceMailServerParametersGroup.

● YousettheInterfaceTypetoFXS(Loopstart).

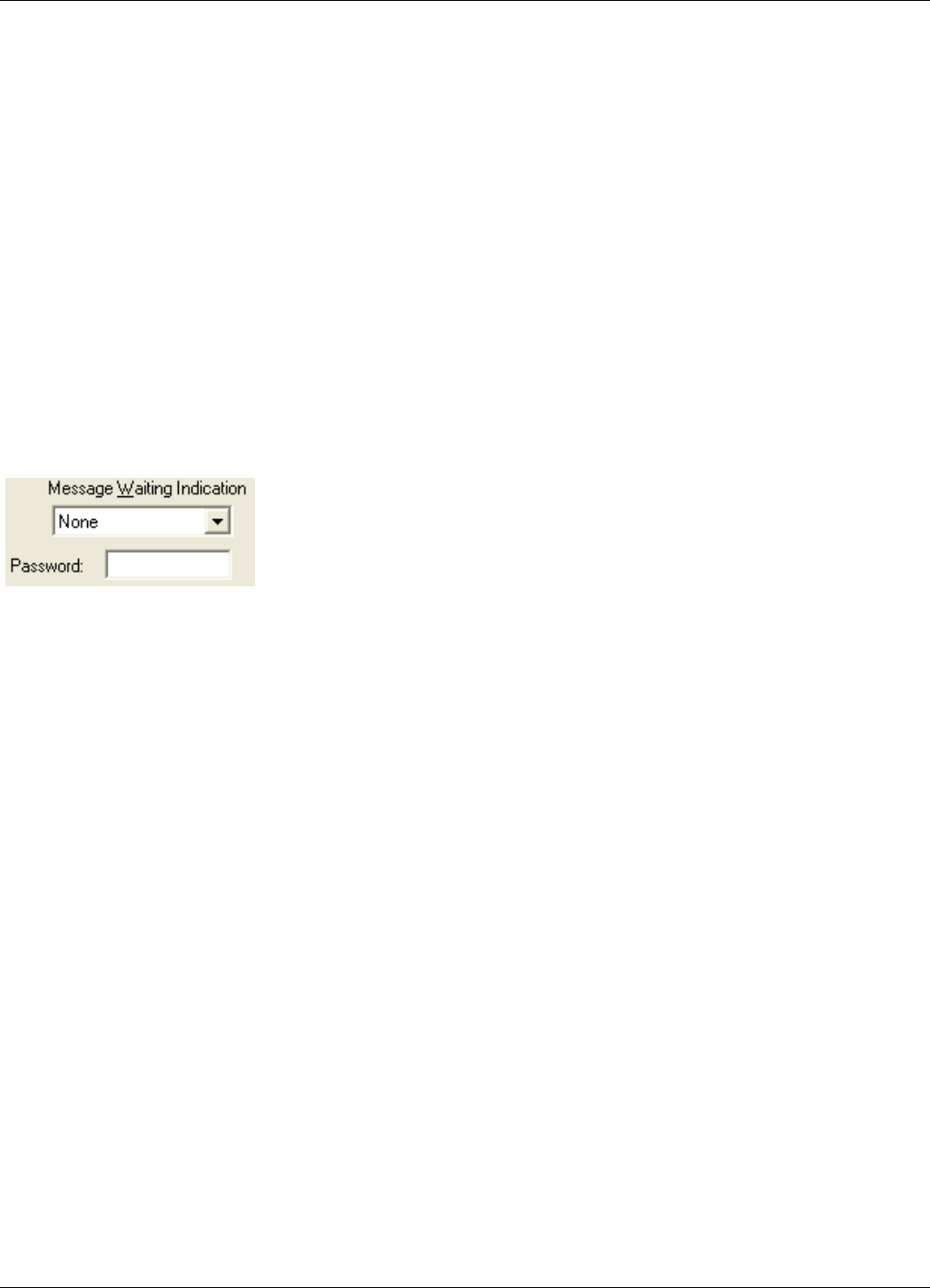

Then,theFXSOptionsGroupbecomesactive.TheMessageWaitingIndicationoptionsareNone,Light,or

StutterDialTone.



ToreceivemessagesfromtheVMS(VoiceMailServer/System):

● Thesubscriptionisenabled.

● Youmustenterthevoicemailservera ddressintheSIPVoiceMailServerParametersGroup.

YouconfiguretheVoiceMailserverIPAddress,PortandRe‐subscription timeontheSIPCallSignalingwindow.

Whenconfigured,the“SubscribewithVoiceMailServer”optionisactivatedintheinboun dphonebook.

Only

whenthisoptionisenabled,thesubscribemessageissenttotheVMS.

ToenabletheMessageWaitingfeatures,allofthefollowingmustoccur:

1. The"UseSIPProxy"mustbeenabled,andtheSIPProxyParametersandVoiceMailServerParametersinthe

SIPCallSignalingMenumustbeset,andtheInterfaceTypeoptionmustbesettoFXS(LoopStart)onthe

Interfacemenu's"MessageWaitingIndication"optionsbecomeactive.

2. Thenthe"MessageWaitingIndication"optionsmustbesettolightorstuttertoneforthe"Subscribeto

VoiceMailServer"optiontobecomeavailableintheInboundphonebookentrywiththatchannelselected.

3. TosendSubscriptionsforInboundPhoneBookentries,allthefollowingfourconditionshavetobesatisfied:

● YouenteravalidvoicemailserverdomainnameorIPaddressintheVoiceMailServerDomainName/IP

AddressfieldontheCallSignalingwindow.

● ForanInboundPhoneBookentry,asubscriptionwithVoiceMailServercheckboxisenabledontheAdd

orEditInboundPhoneBookentrieswindow.

 
