2.3 Hardware Installation Procedure

Perform the procedures in Table 2-1 to configure

and install the ISI552PC card into your ISA or EISA

bus host computer.

1 Make sure your computer and

any peripheral equipment

connected to it, are turned off.

Failure to do so may damage

both your ISI card and your PC.

The card may be installed in any

286-, 386- or 486-based

computer with an ISA or EISA

bus architecture.

Table 2-1

Step Procedure

ISI Configuration and Installation Procedure

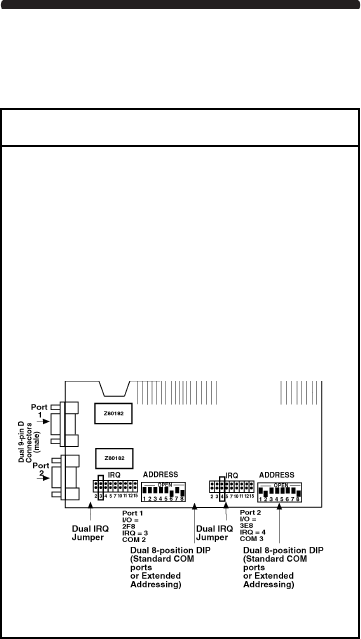

Figure 2-1. I/O Address Switch/IRQ Jumpers

Port #1 Port #2

1 2 ... 5 6 7 8 9 10 11 12 13 14 15 ... 27 28
