Chapter 5 - Client Setup

MTPSR2-201

Configuring in Windows 95/98

Perform the following steps to set up your Windows 95/98 PC:

Note: All of the hardware and screens used in this section are intended as examples only. Please

select options appropriate to your system.

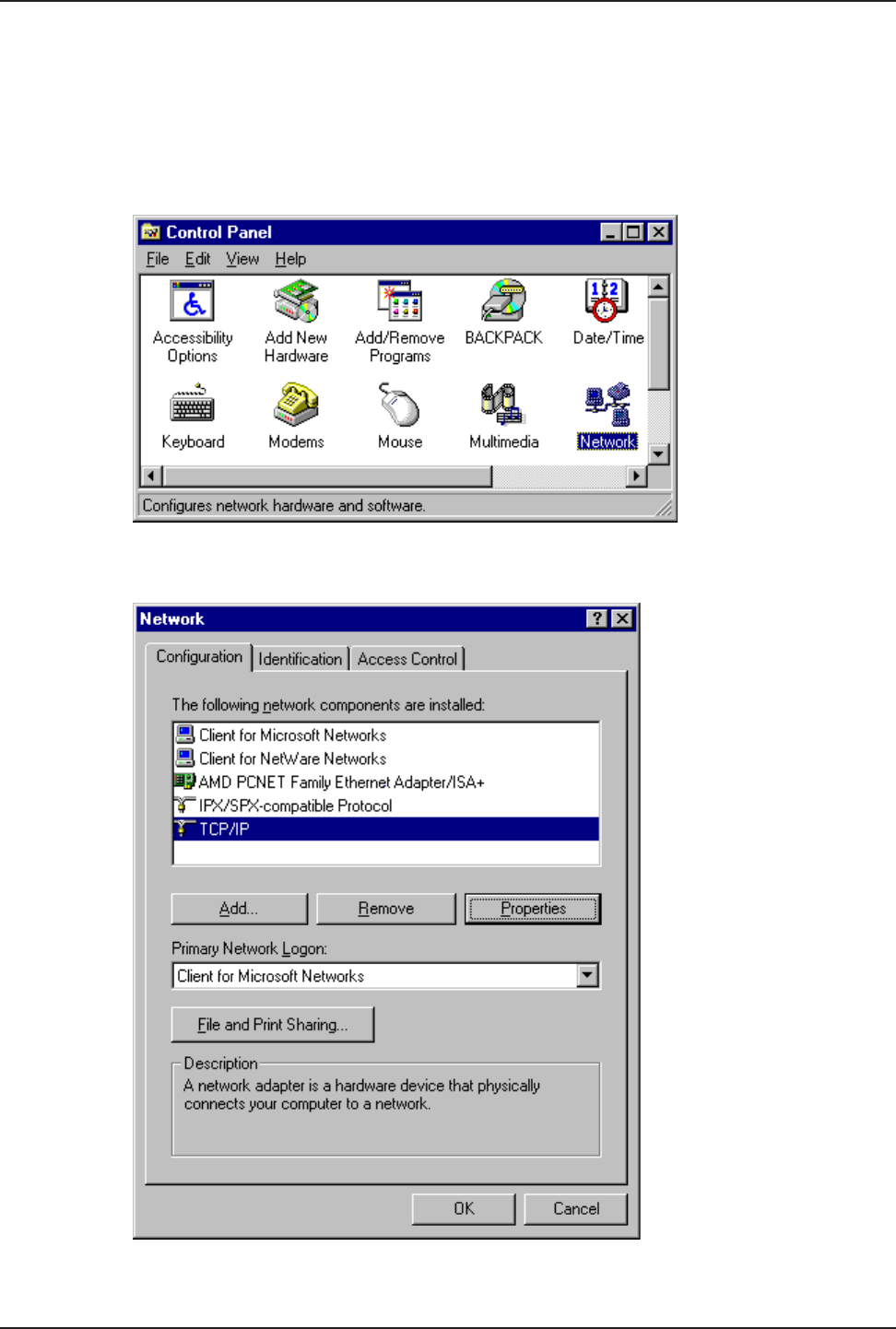

1 Click Start | Settings | Control Panel and then double-click the Network icon.

The Network dialog appears displaying the Configuration tab, which shows all the

components (i.e., clients, adapters, protocols, and any services) installed on your PC.
