Appendix A - Application Examples

Introduction

This section illustrates several types of applications in which the

MT56DSU-R is typically used. These types include:

 DDS point-to-point application,

 DDS multi-point (polled) application,

 Local Area Data Set,

 External Clocking application, and

 Analog Off-Net Extension application

DDS Point-To-Point Application

In this application, the MT56DSU-R provides the interface between

the DDS line and the DTE at your site. Your network provider will

provide (at your request) a DDS line connecting the desired

locations. The figure below depicts a sample DDS Point-to-point

application.

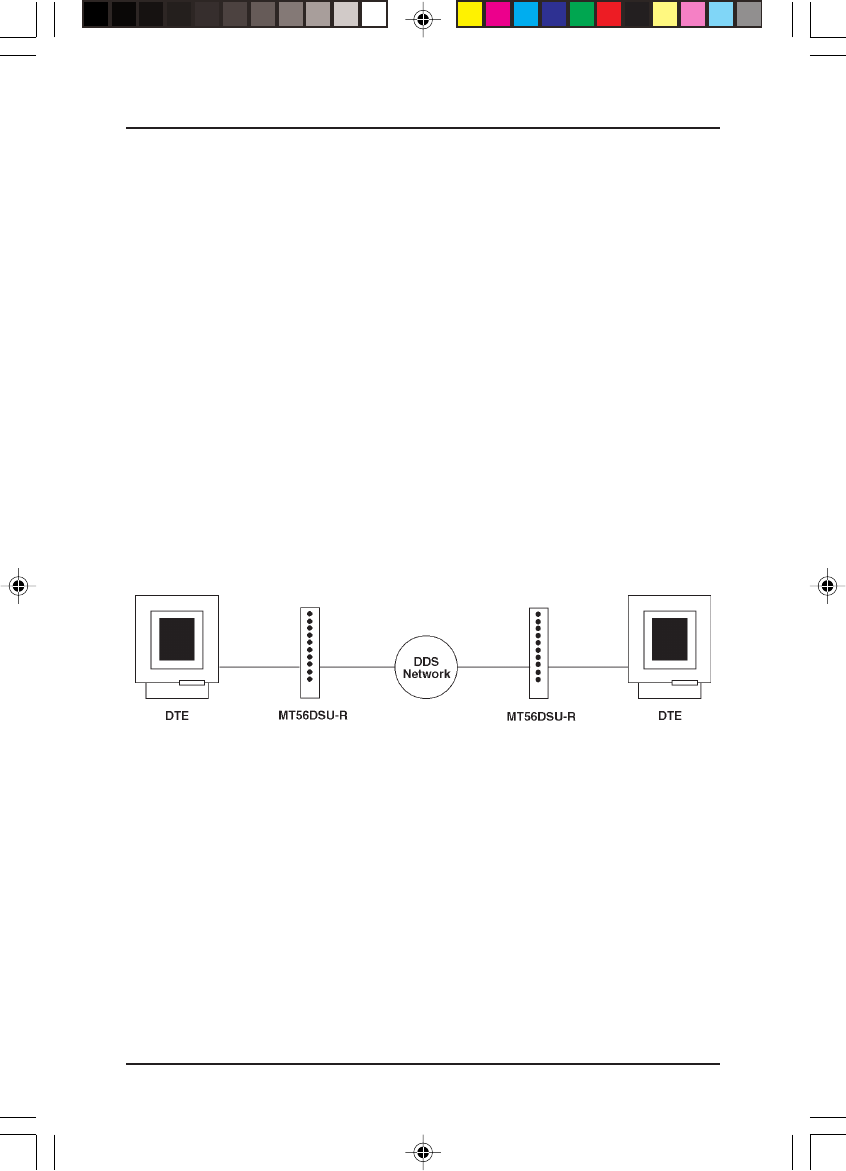

Figure A-1. DDS Point-To-Point Application
